Scum Flange Gate Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Scum flange gate valves
It is widely used in the pipeline of fire power plant water systems and mortar hydraulic discharge system that the nominal pressure PN1.6 ~ 6.4MPa, working temperature 0 ~ 100 ℃. And it cuts off or connects the water pipes of a mixture of ash, and slag-water mixture
Structural features
1、Using flange bolt connection, both ends of branch pipe are flange or butt welded connection.
2、The hoist part uses semi-seal and mandatory seal, and has an excellent performance.
3、Sealing material is wear-resistant ceramic or wear-resistant alloy, it has strong abrasion resistance, durable and erosion resistance, scratch resistent, small friction, and reliable sealing.
4、The junction of body exiting channel is reasonable. It will not deposit slag, open and close easily, and non-jamming.
5、After quenched and tempered and surface nitriding treatment, the stem has a good corrosion resistance, scratch resistance and abrasion resistance.
6、Oversize bore sets antifriction bearing, it is easy to open and close.
Standard
design and manufacture：GB12234 GB3595
face to face dimension：GB12221
pressure and temperature level：GB9131 JB/T74 HG20604
connection flange：JG/T79 GB9113 HG20593-20635
test and inspection：GB13927 JB/T9092
Dimensions & constructral diagram

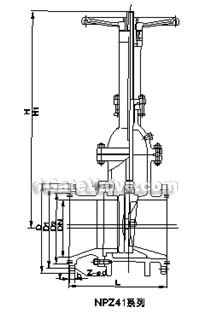

Scum flange gate valve constructral diagram(pic1)
Scum flange gate valve constructral diagram(pic2)
performance parameter
| Working temperature | ≤100℃ |
| Body Material | Carbon steel WCB |
| Applicable Medium | Mixture of Water and ash residue With a ratio of residue：Water≥1：15 and max.diameter≤50mm |
The main connection dimensions
| model | Nominal diameter DN/mm | Main dimensions | ||||||
| L | D | D1 | D2 | b | Z- d | H | ||
| PZ41H-16C PL41H-16C NPZ41H-10C NPZ41H-16C electric scum gate valve dimension as aboved， height,weight,and electric head | 50 | 250 | 165 | 125 | 102 | 20 | 4- 18 | 335 |
| 80 | 280 | 200 | 150 | 133 | 22 | 8- 18 | 510 | |
| 100 | 300 | 220 | 180 | 150 | 24 | 8- 18 | 685 | |
| 150 | 350 | 285 | 240 | 212 | 28 | 8- 22 | 790 | |
| 200 | 400 | 340 | 295 | 268 | 30 | 12- 22 | 885 | |
| 250 | 450 | 405 | 355 | 320 | 32 | 12- 26 | 1015 | |
| 300 | 500 | 460 | 41O | 370 | 34 | 12- 26 | 1190 | |
| 350 | 550 | 520 | 470 | 430 | 38 | 16- 26 | 1350 | |
| 400 | 600 | 580 | 525 | 482 | 40 | 16- 30 | 1460 | |
| 500 | 700 | 715 | 650 | 585 | 46 | 20- 33 | 1820 | |
| PZ41H-25 PZ941H-25 NPZ41H-25 NPZ941H-25 electric dimension as aboved，height,weight,and electric actuator | 50 | 250 | 165 | 125 | 102 | 20 | 4- 18 | 335 |
| 80 | 280 | 200 | 150 | 133 | 22 | 8- 18 | 510 | |
| 100 | 300 | 235 | 190 | 158 | 24 | 8- 22 | 685 | |
| 150 | 350 | 300 | 250 | 212 | 30 | 8- 26 | 190 | |
| 200 | 400 | 360 | 31O | 278 | 34 | 12- 26 | 885 | |
| 250 | 450 | 425 | 370 | 335 | 36 | 12- 30 | 1015 | |
| 300 | 500 | 485 | 430 | 390 | 40 | 16- 30 | 1190 | |
| 350 | 550 | 555 | 490 | 450 | 44 | 16- 33 | 1350 | |
| 400 | 600 | 620 | 550 | 505 | 48 | 16- 36 | 1460 | |
| 450 | 650 | 670 | 600 | 555 | 50 | 20- 36 | 1620 | |
| 500 | 700 | 730 | 660 | 615 | 52 | 20- 36 | 1820 | |
| PL41H-25 PL941H-25 electric dimension as aboved，height,weight,and electric actuator | 150 | 400 | 300 | 250 | 212 | 30 | 8- 26 | 91O |
| 200 | 500 | 360 | 31O | 278 | 34 | 12- 26 | 1100 | |
| 250 | 550 | 425 | 370 | 335 | 36 | 12- 30 | 1430 | |
| 300 | 650 | 485 | 430 | 390 | 40 | 16- 30 | 1558 | |
| 350 | 700 | 555 | 490 | 450 | 44 | 16- 33 | 1678 | |
| 400 | 750 | 620 | 550 | 505 | 48 | 16- 36 | 1830 | |
| 450 | 850 | 670 | 600 | 555 | 50 | 20- 36 | 1990 | |
| 500 | 900 | 730 | 660 | 615 | 52 | 20- 36 | 2160 | |
