Features of Knife Gate Valve
Features of Knife Gate Valve

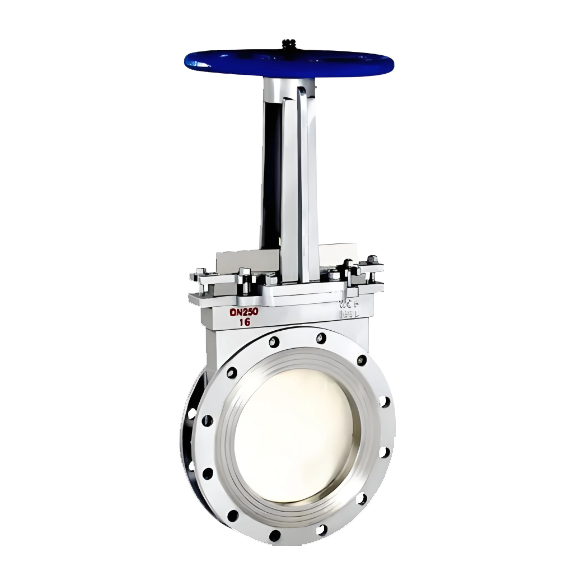

1. Knife-shaped slurry gate valve is made into two types of non-rising stem and rising stem according to different diameters (non-rising stem DN50~900mm and rising stem DN50~900mm). Full-circular DC channel is designed to be free of slag and blockage. The bottom end of the cutter plate is processed into a knife-edge shape, which can cut off soft materials such as fiber, pulp and wood pulp, and has good opening and closing functions. A hard polytetrafluoroethylene scraper is installed at the upper end of the cutter plate to prevent dust, grit and other abrasive substances from entering the stuffing box, significantly improving the service life of the cutter plate. The valve plate is made of stainless steel, with fine grinding and polishing for the best sealing effect. Compact design, small space occupation, light weight, low price, easy to install, complete anti-wear and anti-blocking measures, easy to maintain, easy to use and long life, and optional drive device. The main gate valves product names of China gate Valve Network include:Wafer Bevel Gear Knife-shaped Gate Valve:Knife-shaped Gate Valve,Slurry Gate Valve,Non-rising Stem,Rising Stem,Wafer Type,Flange,Bevel Gear Drive,Pneumatic,Electric,Soft Seal,Hard Seal,Stainless Steel,Wedge Gate Valve,Manual
2. The valve body and packing culvert are precision cast. The valve body is integrally cast with flange. 304, 316, 316L, WCB and 2Crl3 can be selected according to the user's requirements. The sealing ring is made of PTFE reinforced polytetrafluoroethylene, which is corrosion resistant, wear-resistant and slag free.
3. The valve plate has 5 supporting points, so that the valve plate has good self-alignment. When the valve is closed and under back pressure, the valve plate will not shift.
4. Knife gate valve can be equipped with handwheel, manual zipper, spur gear drive, bevel gear drive, pneumatic and electric.
5. The knife-shaped slurry gate valve can be made into V-shaped, triangular and pentagonal channels inside. V-shaped gate can be used as regulation control.
6. Knife-shaped slurry gate valve connection forms include wafer type, flange lug type, metal-to-metal hard seal, metal-to-polyurethane, reinforced polytetrafluoroethylene soft seal.
7. Applicable media: gold ore powder, tailings, pulp, wood pulp, fiber, dust, chemical treatment wastewater, sedimentation tank, ore sand, slag, coal slime, asphalt, bin outlet, fruit, grain, cement slurry, abattoir wastewater, etc.
8. Operating temperature:
Soft seal (PTFE): - 40 ℃ - 180 ℃
Carbon steel: - 29 ℃ - 425 ℃
Stainless steel: - 40 ℃ - 600 ℃
Chromium-molybdenum-vanadium steel: ≤ 550 ℃
Operating pressure: 0.6-1.6MPa
